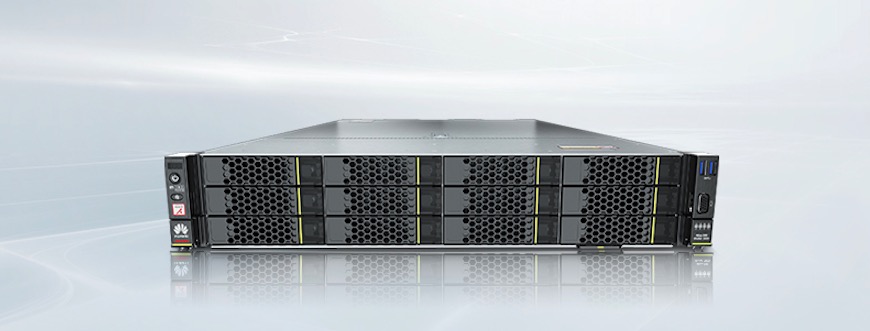

HUAWEI Ascend Atlas 800 Inference Server(Model: 3000)
Powered by the Ascend processor, the Atlas 800 inference server (model: 3000) supports up to 8 Atlas 300I inference cards to provide powerful real-time inference. It is widely used for AI inference in data centers.
Specifications
|
Parameters |
Atlas 800 Inference Server Model: 3000 |
|
Form Factor |
2U AI server |
|
Processor |
2 Kunpeng 920 processors |
|
Processor Memory |
32 DDR4 DIMM slots, up to 3200 MT/s |
|
AI Accelerator Card |
Up to 8 Atlas 300I inference cards |
|
Local Storage |
25 x 2.5'' SAS/SATA drives 12 x 3.5'' SAS/SATA drives 8 x 2.5'' SAS/SATA + 12 x 2.5'' NVMe |
|
RAID |
RAID 0, 1, 10, 5, 50, 6, or 60 |
|
PCIe |
Up to 9 PCIe 4.0 PCIe ports, among which one is a PCIe slot dedicated for screw-in RAID controller card, and the other 8 are for plug-in PCIe RAID controller cards |
|
Power Supply |
2 hot-swappable 900 W or 2000 W AC PSUs, supporting 1+1 redundancy |
|
Fan Module |
4 hot-swappable fan modules, supporting N+1 redundancy |
|
Operating Temperature |
5°C to 40 °C (41°F to 104°F) |
|
Dimensions (H x W x D) |
86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
